Description

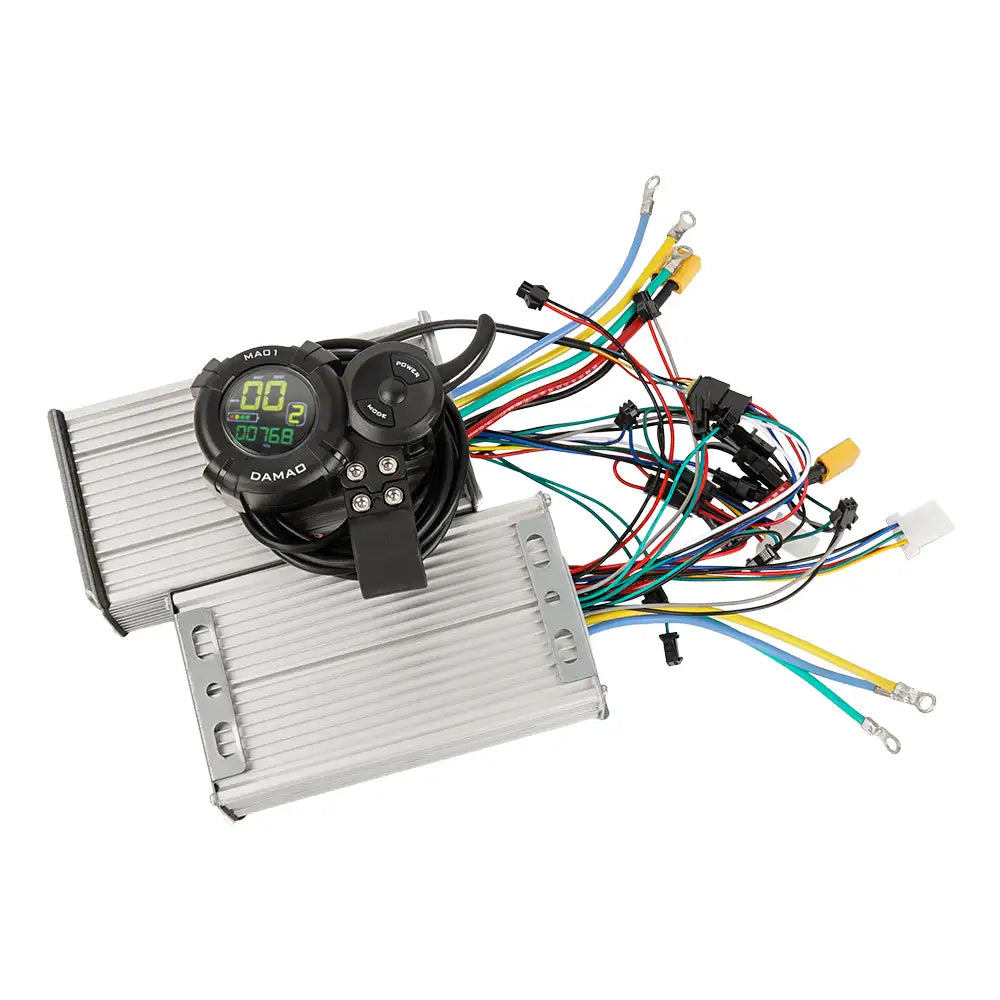

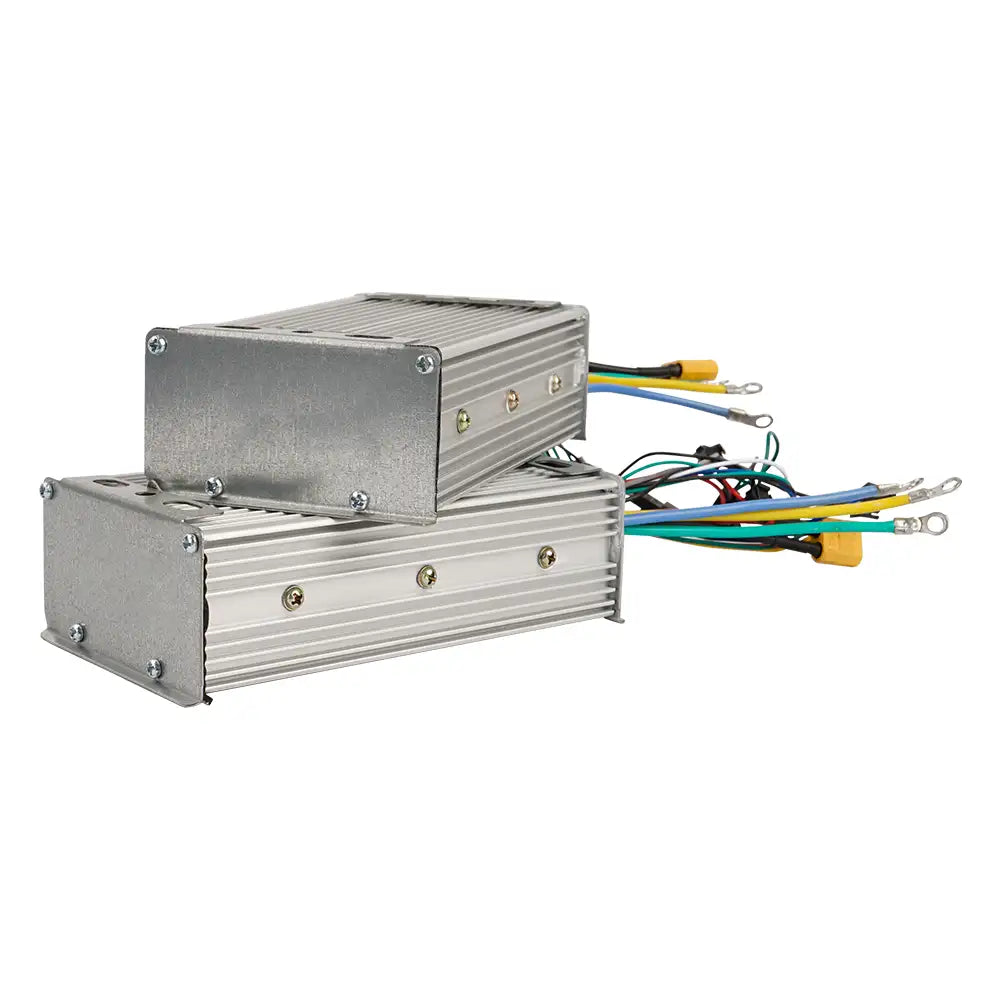

xA dual-drive controller for a scooter is a controller used to simultaneously control two motors (front and rear wheels) to achieve dual-motor drive for the scooter. It is suitable for scenarios requiring high torque and strong power, such as riding on steep or long slopes. The dual-drive system significantly enhances climbing ability and range performance, particularly when carrying heavy loads or during extended riding sessions.
| Part Type | Electric Controller |
| Voltage | 48-72V |
| Current limit | 45A/50A |
| Power | 1500W/2000W/2500W/3000W/3500W |
| MPN | Does not apply |
| Size | 152*82*45MM |
| Weight | 5kg |
The dual-drive controller features multiple protective functions, including overvoltage protection, undervoltage protection, overtemperature protection, stall protection, and CW/CCW speed control functionality.
1. Overvoltage Protection: When the voltage exceeds the set value, the controller automatically cuts off the power supply to prevent motor damage.
2. Undervoltage Protection: When the voltage drops below the set value, the controller automatically cuts off the power supply to prevent motor damage due to insufficient voltage.
3. Over-temperature protection: When the controller or motor temperature becomes too high, the controller automatically cuts off the power supply to prevent overheating damage.
4. Stall protection: When the motor encounters an obstruction and cannot rotate, the controller automatically cuts off the power supply to prevent motor overheating or damage.
5. Overcurrent protection: When the current exceeds the set value, the controller automatically cuts off the power supply to prevent motor or controller damage due to excessive current.
6. Overload Protection: When the motor load exceeds the set value, the controller automatically cuts off the power supply to prevent motor overload.
7. Underspeed Protection: When the motor speed falls below the set value, the controller automatically cuts off the power supply to prevent the motor from being damaged due to low speed.
Should an electric scooter use a single-drive or dual-drive controller?
Dual-drive electric scooters, with their two motors working in tandem, offer faster acceleration and stronger hill-climbing ability. However, this also adds extra weight, making the scooter heavier overall and affecting its range, resulting in a shorter range compared to single-drive scooters.
Single-drive electric scooters, while not as fast or as strong on hills as dual-drive models, are lighter in weight and have a longer range. On flat roads, single-motor scooters can better leverage their range advantage, providing users with longer usage time.
When facing steep inclines, single-motor electric scooters may struggle due to insufficient power, leading to increased energy consumption. Dual-motor electric scooters, however, utilize the combined power of two motors, enabling them to climb hills more effortlessly even beyond the rated power of single-motor scooters, while also being more energy-efficient.
Whether to choose a dual-motor or single-motor electric skateboard depends on individual needs. If users frequently ride on flat roads and have high requirements for range, a single-motor electric skateboard is a better choice. However, if users need to ride in complex terrain, especially with frequent hills, a dual-motor electric skateboard offers better performance.
Customized Range
xLunyee Mobility specializes in developing, designing, customizing, manufacturing and marketing products such as hub motors, drive axles and wheelchair motors to suit different applications. Hub motors are customized to include size, power, voltage, speed, torque and control system tuning to meet specific operational needs. Our customization capabilities include
- Tire Size:
- The choice of tire size can have a significant impact on the performance of an electric motor. Customizable options range from compact 4-inch wheels for light-duty applications to 16-inch or larger wheels for high-load agricultural and industrial vehicles.
- Performance:
- Performance customization includes factors such as torque output, speed and energy efficiency. High-torque motors are ideal for heavy-duty applications, while high-speed motors are suitable for performance-based solutions such as electric scooters or e-bikes.
- Rated Power:
- Power options vary by application needs, from low-power 250W motors for electric unicycles to high-power 3000W motors for high-performance vehicles. The amount of power directly affects load capacity, acceleration and durability, so it can be customized to meet specific operational needs.
- Voltage:
- Voltage customization ranges from 24V for light-duty applications to 72V for high-power systems, with higher voltages contributing to increased efficiency and power output for applications requiring extended range and enhanced performance.
