xA bicycle hub motor is a device that integrates a motor directly into the wheel hub, converting electrical energy into mechanical energy to drive the wheel rotation and propel the vehicle forward. It features a compact design that does not occupy additional frame space, and its integrated design with the wheel results in a lower center of gravity and improved stability for the electric bicycle.
We prefer to install hub motors on the rear wheels of electric bicycles, especially in sports models. This is because the structural strength of the rear triangle is more stable and reliable compared to the front fork, and the transmission of torque and cadence signals, as well as wiring layout, is more convenient.

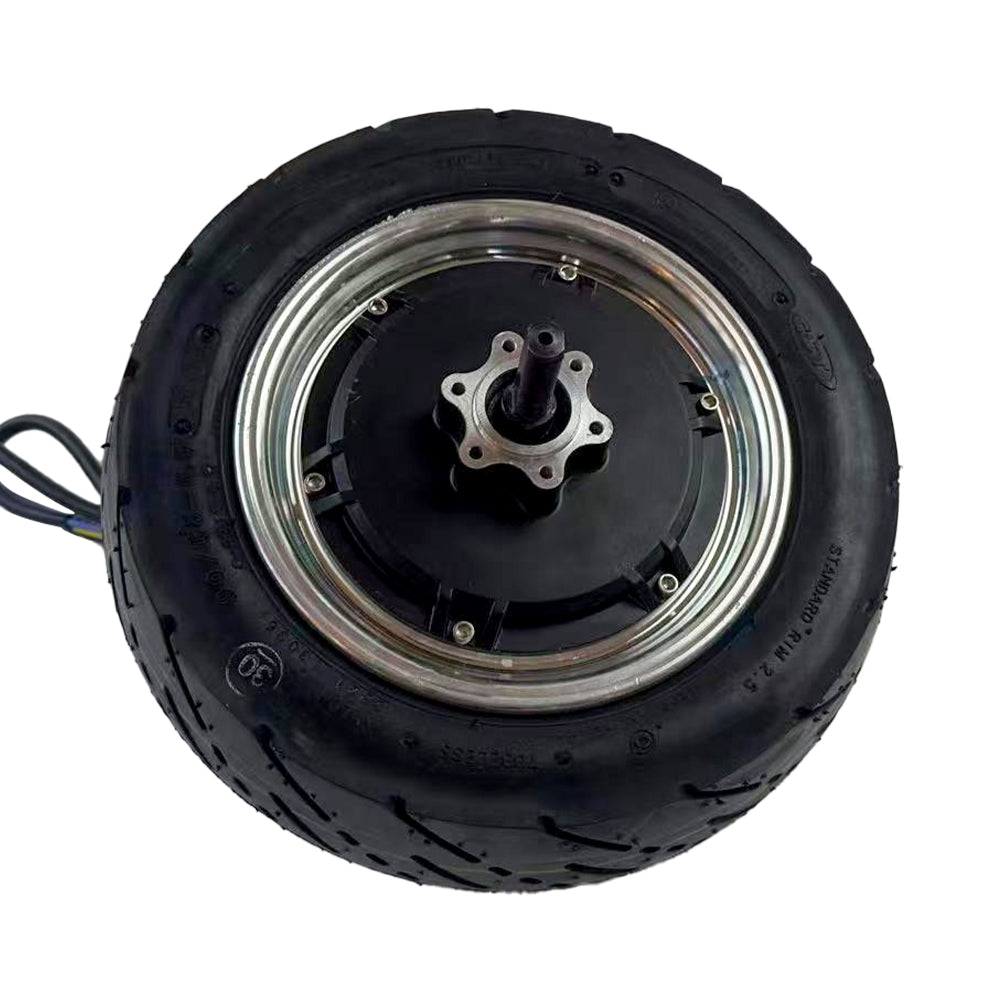

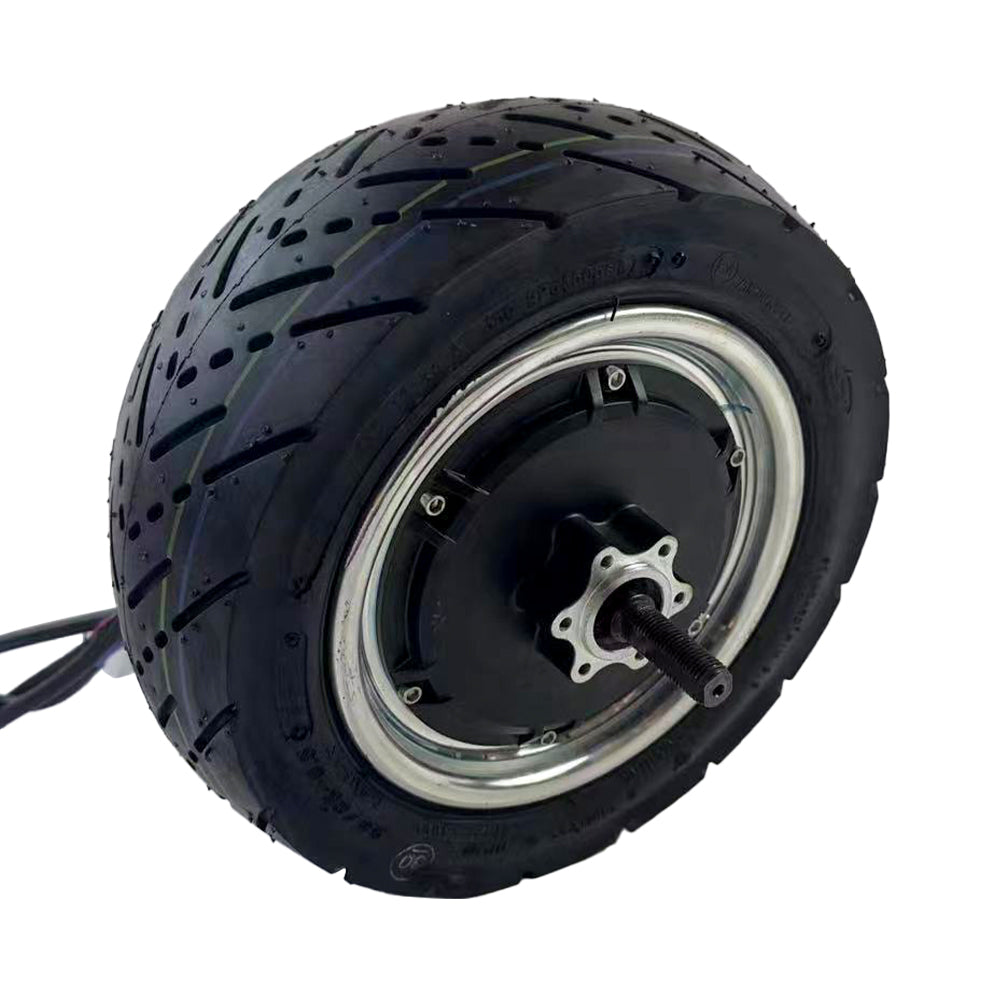

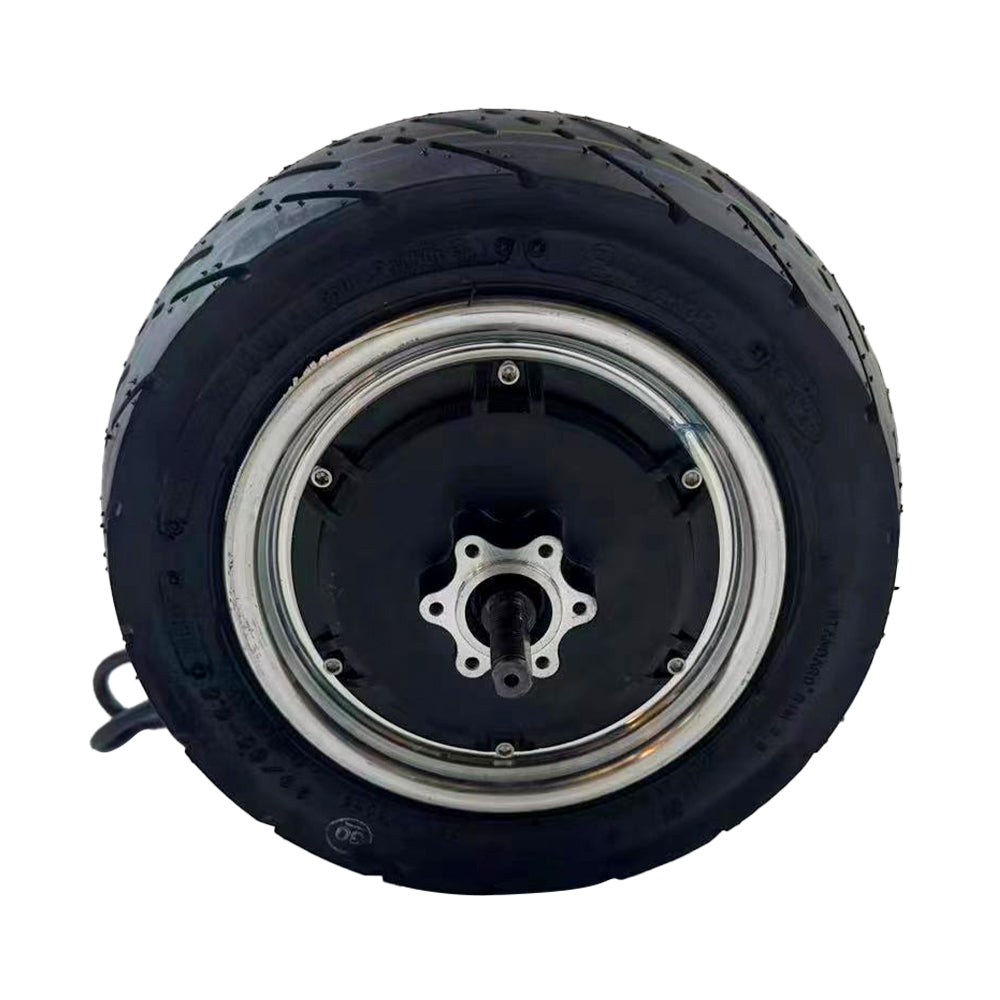

| Model Type | 11 Inch Brushless Gearless Hub Motor |
| Design | Brushless Gearless |
| Voltage | 48V-72V |
| Rated Power | 1500W/2000W/3000W/4000W |
| Speed | 50/60/80/90km/h |
| Maximum Torque |
55N.m |
| Magnet Poles |
15 |
| Scope of Application | Electric Scooter Motor |
| Gross Weight | 7kg |
| IP Grade | IPX6 |
The motor delivers a maximum torque of 55 Nm, supports 48V-72V voltage systems, provides instant acceleration and powerful hill-climbing capability, while maintaining silent operation. Its brushless, gearless design eliminates mechanical wear, ensuring ultra-low maintenance costs and a longer service life compared to traditional gear motors. Whether you're upgrading a mountain bike for off-road adventures or converting a folding commuter bike into a high-speed electric bicycle, the motor's adjustable rated power and speed can meet your diverse needs.
High Transmission Efficiency: Hub motors are directly installed on the wheels, eliminating the need for traditional transmission system components such as transmissions and clutches in conventional vehicles. This simplifies the structure of electric bicycles/scooters, improves transmission efficiency, and reduces energy loss.
High Energy Utilization: Hub motors enable precise power control, avoiding energy waste common in traditional internal combustion engine vehicles and improving energy utilization.
Excellent Maneuverability: Hub motors enable independent control of all four wheels, applying different torque to each wheel to achieve electronic differential control and precise vehicle dynamics control, thereby enhancing vehicle stability and maneuverability.
Low Noise: Hub motors operate with minimal noise, resulting in a quieter overall running experience and providing a more comfortable driving experience.
Hub motors are suitable for a variety of vehicle types, including electric bicycles, scooters, and folding bicycles, and can be applied in various environments, primarily including the following:
Urban Commuting: Motorized bicycles are ideal for short-distance travel within cities, particularly in congested urban areas, providing sufficient power support to reduce physical exertion for riders.
Mountain Biking: In riding environments requiring hill climbing or traversing complex terrain, hub motors provide continuous power support, reducing the rider's burden and enhancing riding comfort and efficiency.
Customized Range
xXspire Shop specializes in developing, designing, customizing, manufacturing and marketing products such as hub motors, drive axles and wheelchair motors to suit different applications. Hub motors are customized to include size, power, voltage, speed, torque and control system tuning to meet specific operational needs. Our customization capabilities include
- Tire Size:
- The choice of tire size can have a significant impact on the performance of an electric motor. Customizable options range from compact 4-inch wheels for light-duty applications to 16-inch or larger wheels for high-load agricultural and industrial vehicles.
- Performance:
- Performance customization includes factors such as torque output, speed and energy efficiency. High-torque motors are ideal for heavy-duty applications, while high-speed motors are suitable for performance-based solutions such as electric scooters or e-bikes.
- Rated Power:
- Power options vary by application needs, from low-power 250W motors for electric unicycles to high-power 3000W motors for high-performance vehicles. The amount of power directly affects load capacity, acceleration and durability, so it can be customized to meet specific operational needs.
- Voltage:
- Voltage customization ranges from 24V for light-duty applications to 72V for high-power systems, with higher voltages contributing to increased efficiency and power output for applications requiring extended range and enhanced performance.
